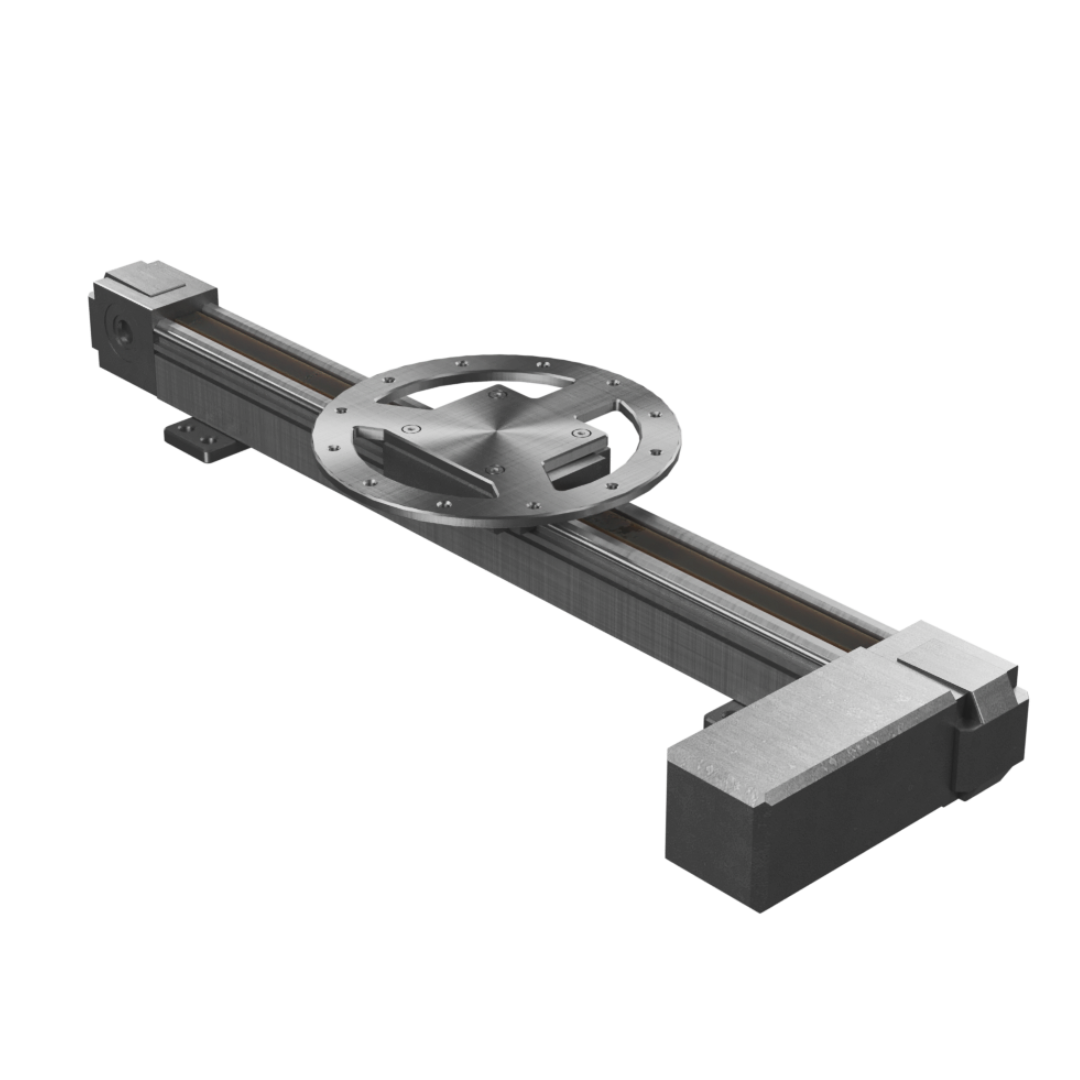

Sliding Rail
Sliding Rail
Regular price
$249.00 USD
Regular price
$299.00 USD
Sale price
$249.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The product is shipped from Vietnam.
Features
- High-precision motion with 0.02 mm accuracy.
- Durable and lightweight design, perfect for desktop robotics.
- Supports payloads up to 8 kg for versatile application scenarios.
- Adjustable speed and position via G-code commands for precise control.
- UART connection for seamless communication and integration.
- Ideal for extending the reach of desktop Delta robots.
In the Box
- Sliding Rail
- 12V-2A Power Supply
- USB UART TTL for connectivity
Specifications
| Parameter | Specification |
|---|---|
| Accuracy | 0.03 mm |
| Working Space | 400 mm |
| Max Payload | 15 kg |
| Mass | 4.5 kg |
| Max Speed | 300 mm/s |
| Max Acceleration | 5 m/s² |
| Power Supply | 24V/3A |
| Connection | UART, ETHERNET |
| Control Method | G-code |
Sliding Rail G-code Commands
| Command | Description | Usage | Parameters |
|---|---|---|---|
| M320 | Go To Home | M320 |
- No parameters |
| M321 | Set Speed | M321 [<value>] |
- [<value>]: Speed in mm/s |
| M322 | Set Position | M322 [<value>] |
- [<value>]: Position in mm |
| M323 | Disable Stepper Motor | M323 |
- No parameters |
Applications
The Desktop Sliding Rail is an essential accessory for extending the capabilities of desktop Delta robots. Its applications include:
- Enhancing the workspace for pick-and-place operations.
- Supporting extended assembly or material handling workflows.
- Facilitating multi-point testing and inspection processes.
- Versatile use in research, education, and small-scale manufacturing.
