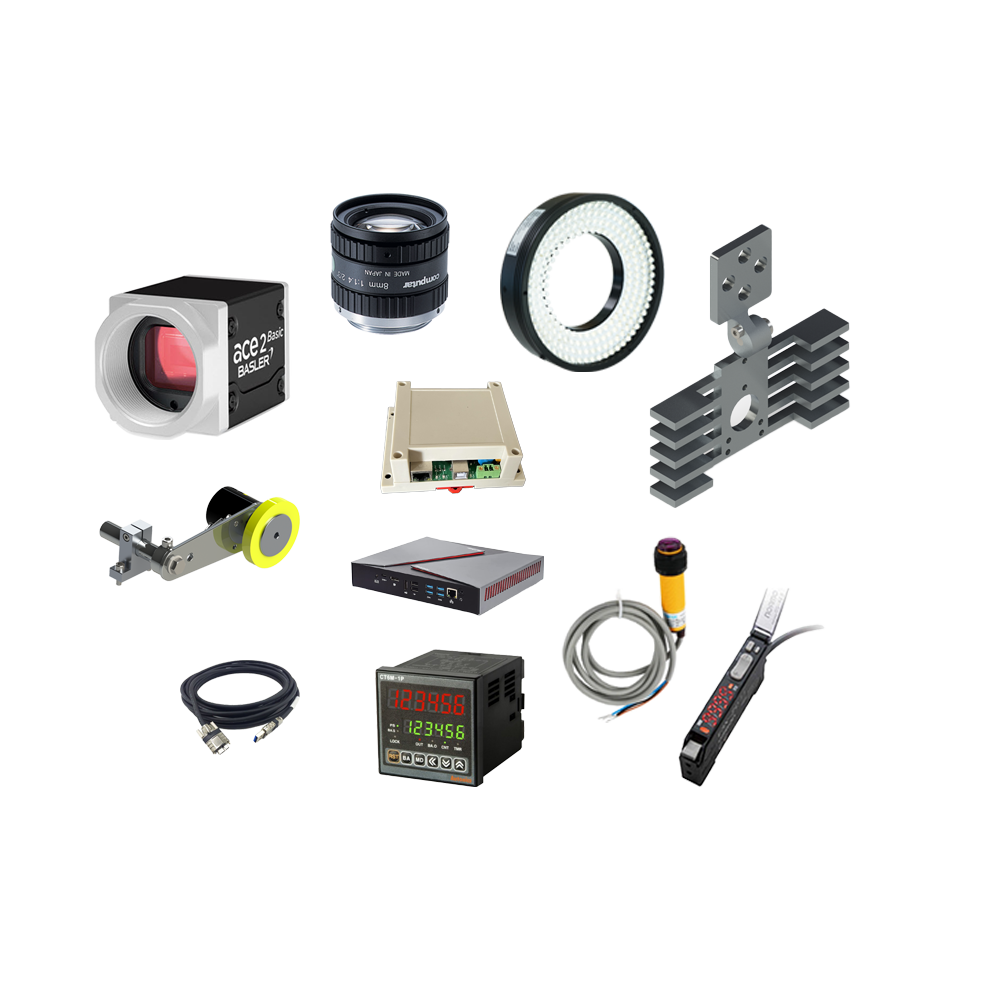

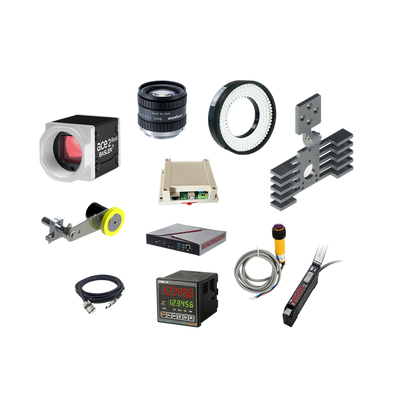

The Industrial Vision System for object detection and tracking is a powerful solution designed to identify, locate, and monitor objects within an industrial setting. This system utilizes advanced technology and components to achieve its functionality, including:
Camera BASLER a2A1920-160ucBAS:
Pixel (HxV)
1920 x 1200
Type of Shutter
Global
FPS
160
Camera Type
Color Camera
M0814-MP2 Lens:
Focal Length
8.0 mm
Min Working Distance
100 mm
Industrial Camera Lighting LED-A4090
Power
15V/5W - 220VAC
LUX
80000
Outside Diameter
90 mm
Inside Diameter
40 mm
Thickness
22 mm
Aluminum heat sink & Adjustable camera bracket:
Material
Aluminum
Camera Cable USB3-5.0M-L-DC
Connection Type
USB
Length
5.0 m
Photoelectric Proximity Sensor E3F-DS30P1
Voltage
6 - 36VDC
Measuring Distance
0 - 300mm
Type
PNP output
X Encoder Kit: includes Encoder, X Encoder Circuit, USB - B cable
Resolution
1024 pul/rev
Power Supply Voltage
5 - 24VDC
Output Type
NPN Open Collector
Output Phases
A, B and Z

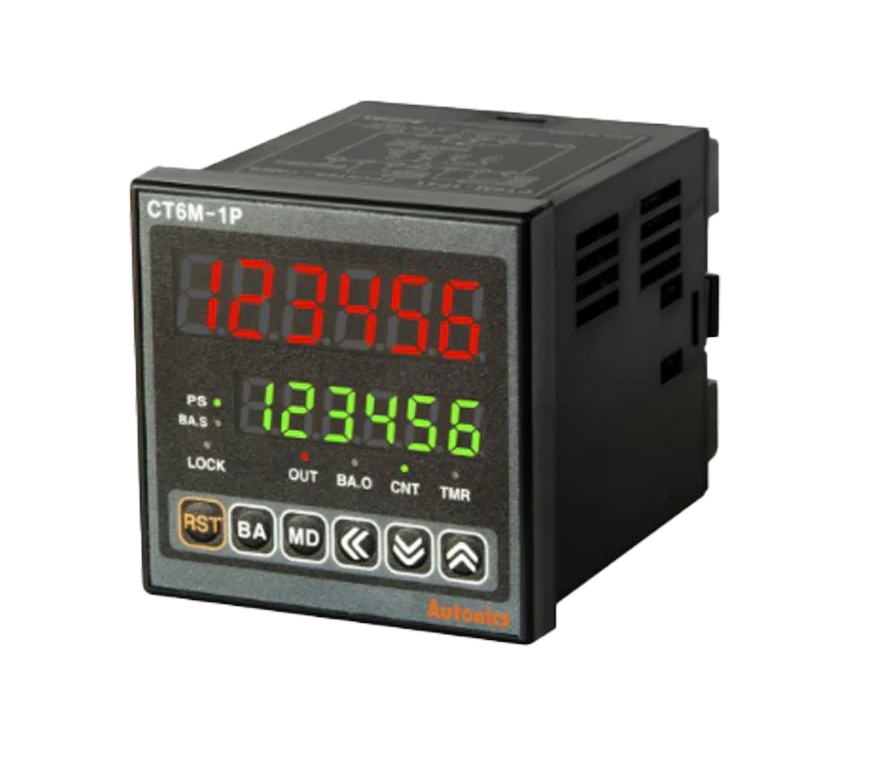

Industrial Decoder (Autonics CT6M-1P)
Power Supply
100 - 240VAC
Communication
RS485 (Modbus RTU)
One-shot output time:
0.01 s to 99.99 s
Prescale value range
6-digit models: 0.00001 to 99999.9,4-digit models: 0.001 to 999.9
Mini PC: installed AI X - Vision Software dev by IMWI Team
