Desktop Conveyor
Desktop Conveyor
Couldn't load pickup availability
The product is shipped from Vietnam.
- Compact, lightweight design suitable for desktop use.
- High-precision operation with 0.02 mm accuracy.
- Adjustable speed and positioning via G-code commands or manual potentiometer control.
- Easy integration with UART / USB connection for seamless communication.

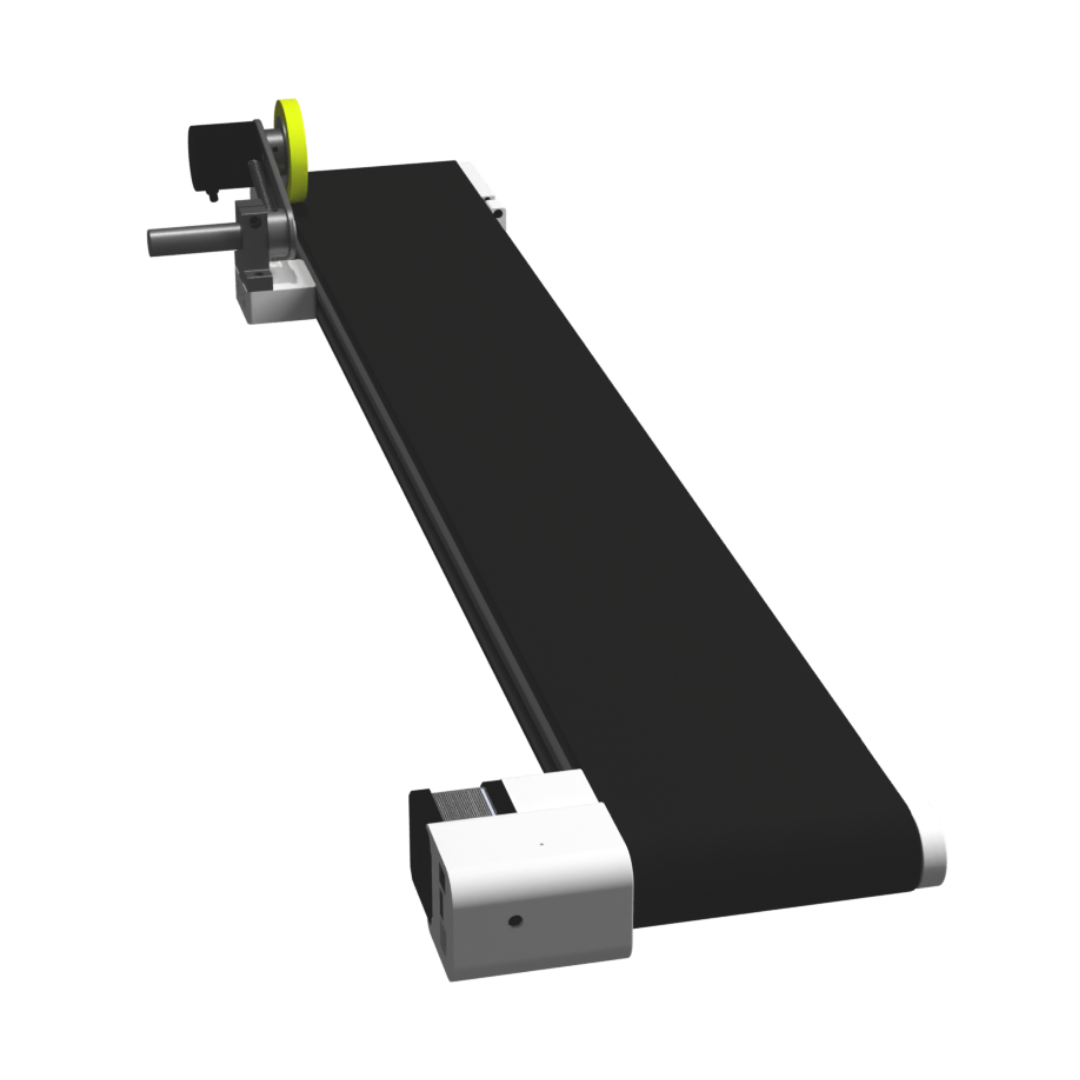

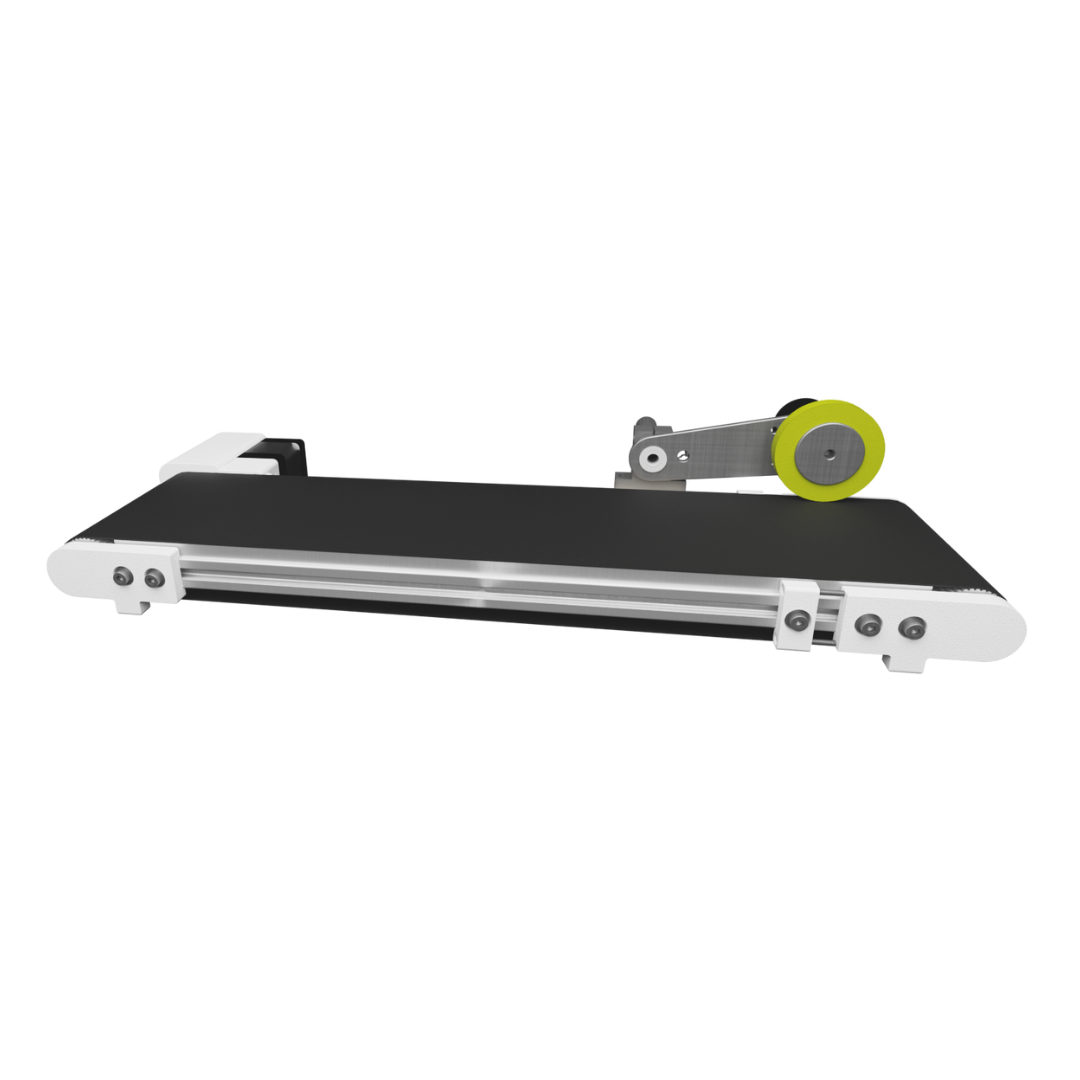

- Includes both Short (500 mm) and Long (1000 mm) conveyor options to match specific workspace requirements.
- Sampling frequency of up to 10 kHz for high-speed data collection.
In the Box
- Desktop Conveyor (Short or Long version)
- 12V-2A Power Supply
- USB UART TTL for connectivity
- Encoder Kit (Optional)
Specifications
|
Parameter |
Desktop Short Conveyor |
Desktop Long Conveyor |
|
Accuracy |
0.02 mm |
0.02 mm |
|
Length |
500 mm |
1000 mm |
|
Width |
120 mm |
120 mm |
|
Mass |
2 Kg |
2 Kg |
|
Max Speed |
100 mm/s |
100 mm/s |
|
Max Acceleration |
5 m/s² |
5 m/s² |
|
Power Supply |
12V/2A |
12V/2A |
|
Connection |
UART / USB |
UART / USB |
|
Control Method |
G-code, Potentiometer |
G-code, Potentiometer |
Conveyor G-code Commands
|
Command |
Description |
Usage |
Parameters |
|
M310 |
Set Mode |
M310 [<index>] |
– 1: Serial Mode– 0: Volume Mode |
|
M311 |
Set Speed |
M311 [<value>] |
– [<value>]: Speed in mm/s |
|
M312 |
Set Position |
M312 [<value>] |
– [<value>]: Position in mm |
|
M313 |
Set Speed for Position Moving |
M313 [<value>] |
– [<value>]: Speed in mm/s |
|
M316 |
Select Response Mode |
M316 [<mode>] |
0: Absolute Mode (default)1: Relative Mode |
|
M317 |
Get current position |
M317M317 [T<period>] |
Period: auto feedback position period (milliseconds) |
|
M318 |
Set pulse/mm value |
M318 [S<ppm>] |
[<ppm>]: encoder pulse/mm value |
Applications
- Desktop-based manufacturing and assembly workflows.
- Laboratory testing and analysis.
- Small-scale packaging and sorting operations.
- Customizable automation projects for hobbyists and professionals.
