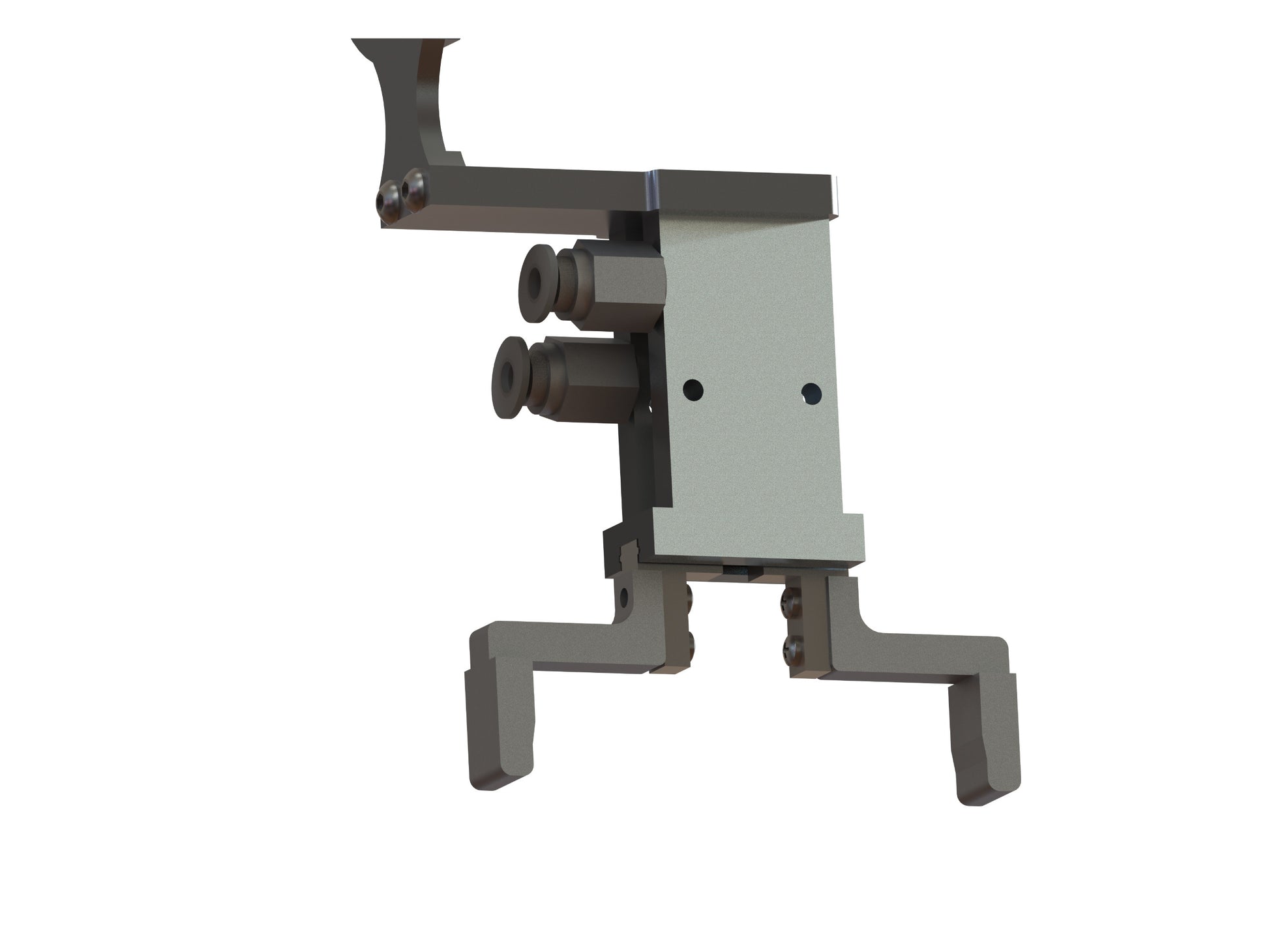

Delta X S Gripper
Delta X S Gripper
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The product is shipped from Vietnam.
After placing your order, please send an email to deltaxrobot@gmail.com or message through the store's chatbox to describe the desired size of the gripper.
Specifications
|
Parameter |
Specification |
|
Rated Supply Voltage |
12~24VDC |
|
Power Consumption |
0.45W |
|
Operating Pressure |
0.2 to 0.7 MPa |
|
Static Power Consumption |
75W |
|
Weight |
100g |
|
Maximum Gripping Force |
17N (at 0.5 MPa) |
|
Stroke |
4mm |
|
Working Range |
20–24mm (close/open) |
|
Actuation Type |
Double-acting |
|
Control Method |
Direct On/Off |
|
Response Time |
20ms (0.5 MPa) |
|
Type of Valve |
5/2-way valve |
