Delta X 2 Pick & Place Kit
Delta X 2 Pick & Place Kit
Regular price
$699.00 USD
Regular price
$599.00 USD
Sale price
$699.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The product is shipped from Vietnam.
Delta X 2 is an upgraded version of Delta X.
Difference:
- 70% of robots are made of aluminum metal.
- Use closed-loop stepper motor.
- Control board using ARM M3 processor.
- Optimized design.

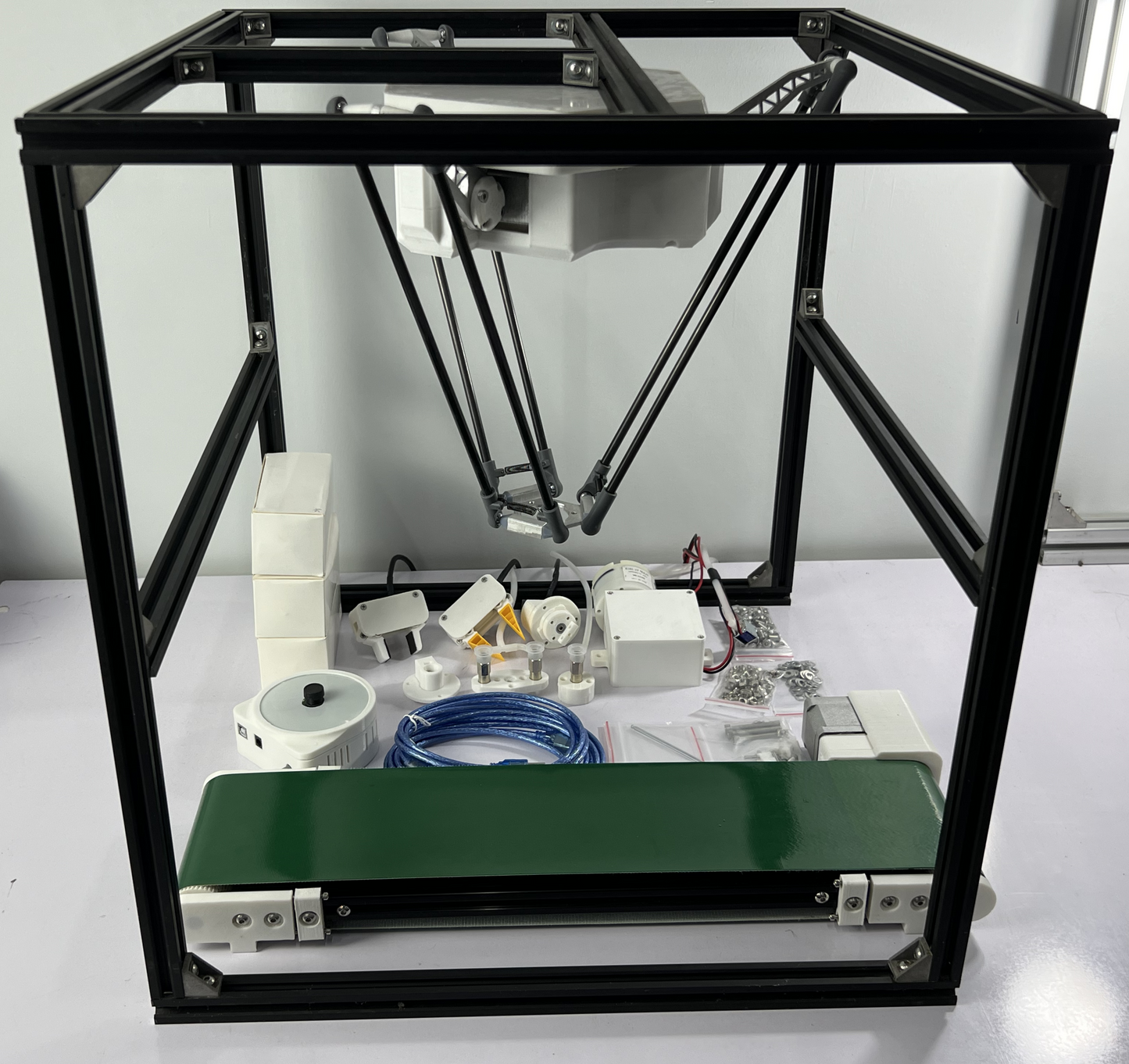

INCLUDES:
✓ Delta X 2 Robot
✓ 12V-5A Power Supply, USB-B Cable, UART Cable.
✓ Capacitive Pen.
✓ Soft Gripper.
✓ Hard Gripper.
✓ Double Suction Cups.
✓ Single Suction Cup.
✓ Vacuum pump.
✓ 4-axis.
✓ Hyper Cube Frame.
Basic parameters:
|
Accuracy
|
0.15mm
|
|
Working space diameter at 342 – 460 mm
|
320 mm
|
|
Max payload
|
700g
|
|
Mass
|
4 Kg
|
|
Max speed
|
0.8 m/s
|
|
Max acceleration
|
20 m/s2
|
|
Power
|
12V/5A
|
Working dimension:
Moving base dimension:
Update 1:
Update 2:
